Setup, operation, maintenance, pre-sales FAQ, and troubleshooting resources for the K2 Pro 55 W laser engraver.

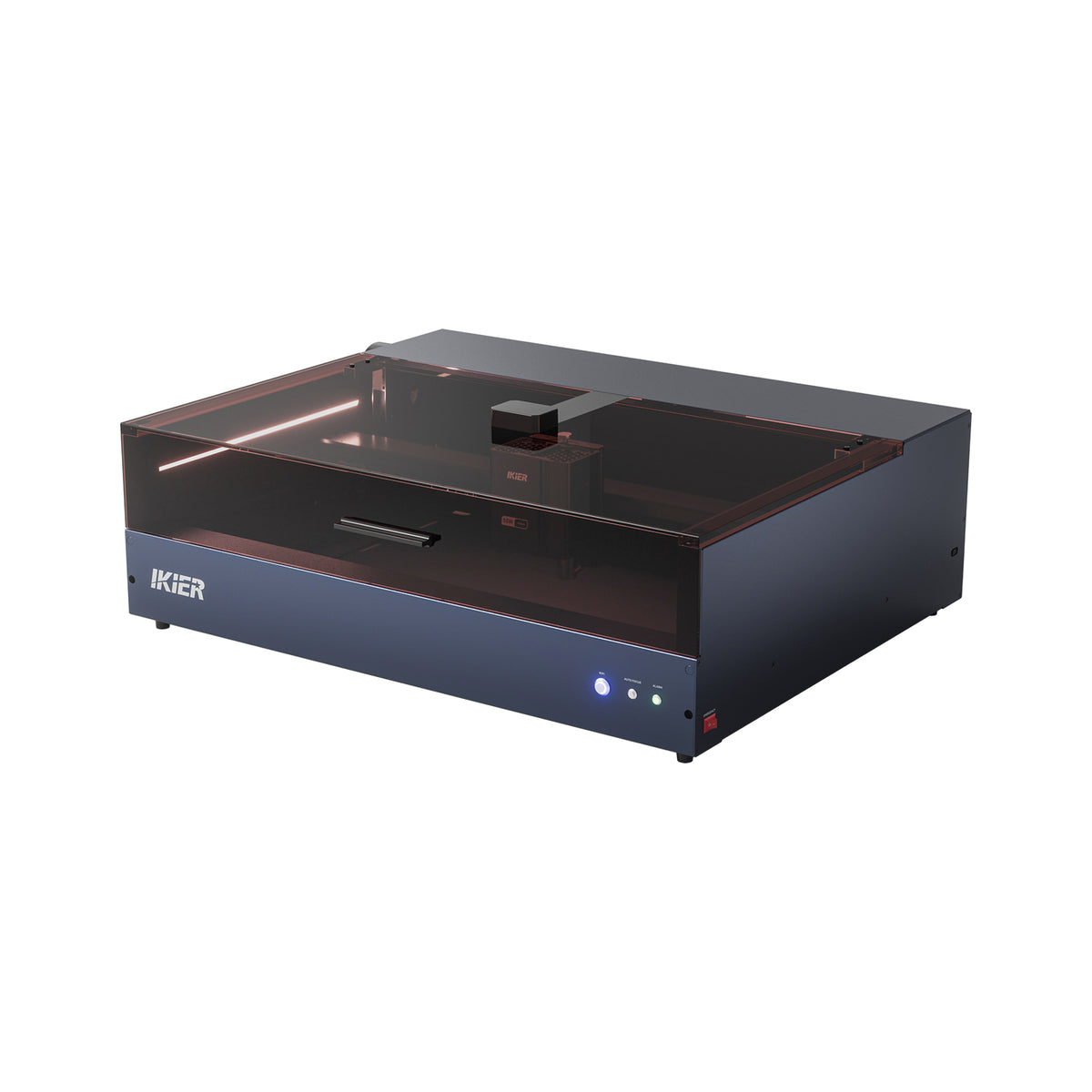

The K2 Pro is iKier's enclosed laser engraver with 55 W maximum laser output. The standard engraving area is 500 × 300 mm, and with the R7 conveyor feeder and H4 riser it extends to 500 × 800 mm. Materials up to 55 mm thick fit inside the enclosure. With the door closed and the bottom plate in place it is a Class 1 laser product (IEC 60825-1).
A honeycomb bed and an air assist with a fire-extinguishing pump come as standard: when the flame alarm goes off, the pump sprays water on the fire, so fill the water tank before use. The K2 Pro engraves and cuts leather and engraves stainless steel, iron and black anodized aluminum; metal cannot be cut. It has auto focus and a built-in camera, works with AtomStack Studio, LightBurn and the AtomStack app over Wi-Fi, and runs jobs from a USB drive with the CR1 control panel. With the R6 or R8 rotary attachment and the H4 riser it engraves cups and bottles.
Removing the bottom plate lets you engrave objects that do not fit inside the enclosure, but the machine is then no longer Class 1, so wear eye protection. Use original iKier laser modules only.
Who it suits: makers and small businesses who want a large enclosed machine for batch work, with the option of a conveyor feeder for long pieces.
